ADCO Manufacturing 15DZ-60-SS
Manufacturer:ADCO Manufacturing
Model:15DZ-60-SS

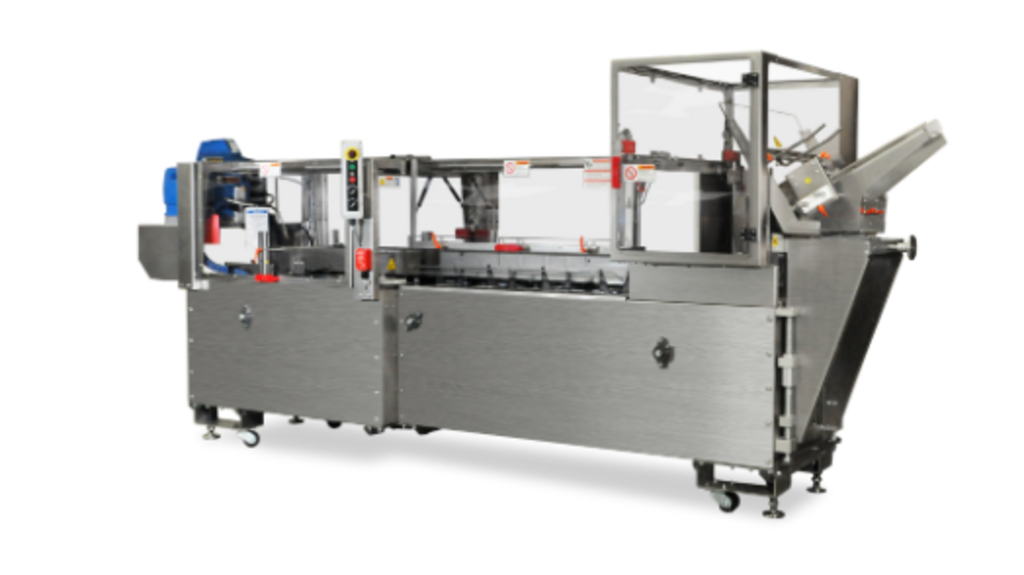

The Adco 15DZ-60-SS Hand Load Cartoner is a versatile packaging machine designed to efficiently handle the cartoning of various products. With a user-friendly manual loading system, this cartoner is well-suited for smaller production runs where manual intervention is practical. The machine employs a reliable carton erecting mechanism, ensuring precise and consistent carton forming. Its design facilitates easy changeovers for different carton sizes, enhancing flexibility in packaging operations. The Adco 15DZ-60-SS Hand Load Cartoner is recognized for its reliability, ease of use, and adaptability, making it a valuable asset for businesses seeking efficient and customizable cartoning solutions.
Buy a Used ADCO Manufacturing 15DZ-60-SS
Currently out of stock. We are actively looking to restock this model. Have one to sell?
Availability: Out of Stock
Buy a New ADCO Manufacturing 15DZ-60-SS
Order a factory-new ADCO Manufacturing 15DZ-60-SS. Get the latest technology, a full manufacturer's warranty, and seamless integration support from our experts.
Est. Lead Time: Varies
Equipment Sourcing
Can't find the exact model you need? Let our team source it for you.
Can't find it? Let us source it.
Finance Your Equipment
Get the equipment you need today. We offer flexible financing and leasing options.
Flexible financing options.
Sell
Explore our full-service selling solutions to maximize your equipment's resale value.
Sell your surplus equipment.
Description
Operational summary:
The 15DZ-60-SS is a continuous motion machine designed to erect cartons from the 24” gravity carton hopper with a single head rotary carton feeder. The carton feeder vacuum is activated by a signal from the operator actuated foot switch. After the cartons are erected they pass by a 4’ hand load table for product loading by the operator. The carton flaps are folded and closed with hot melt adhesive. The finished cartons are then discharged from the end of the machine.
Machine specifications:
- Carton size range, carton size range may require a changeover process and/or change parts:
- Length of opening: 1 inch minimum to 9 inch maximum (25 - 228 mm)
- Width of opening: 1 inch minimum to 4 inch maximum (25 - 100 mm)
- Carton depth: 4 inch minimum to 12 inch maximum (100 - 305 mm)
- Frame: 127 inches long, bolt-together stainless steel main frame
- Casters for portability and leveling feet
- Continuous motion with 1 horsepower variable speed drive system with main drive overload protection
- 24 inch long inclined gravity fed carton magazine with adjustable pick gate
- Rotary carton feeder
- Vacuum generator
- Foot switch for carton picking vacuum control
- 48 inch long hand load table, located on the left hand side
- Non-captured flight chains with 12 inch lug centers
- Horizontal minor flap tucker on downstream load side
- Nordson hot melt glue unit with separate electrical disconnect
- Left hand product load side
- Carton bottom to floor elevation: 36 inches
- Non-washdown construction
- Scales on all major changeover adjustments
- Orange handles on all applicable size adjustments
- NEMA 12 (IP55) electricals
- Electrical requirements: 230 volts, 3 phase, 60 hertz, 30 amps
- Air requirements: 10 CFM at 95 PSI
