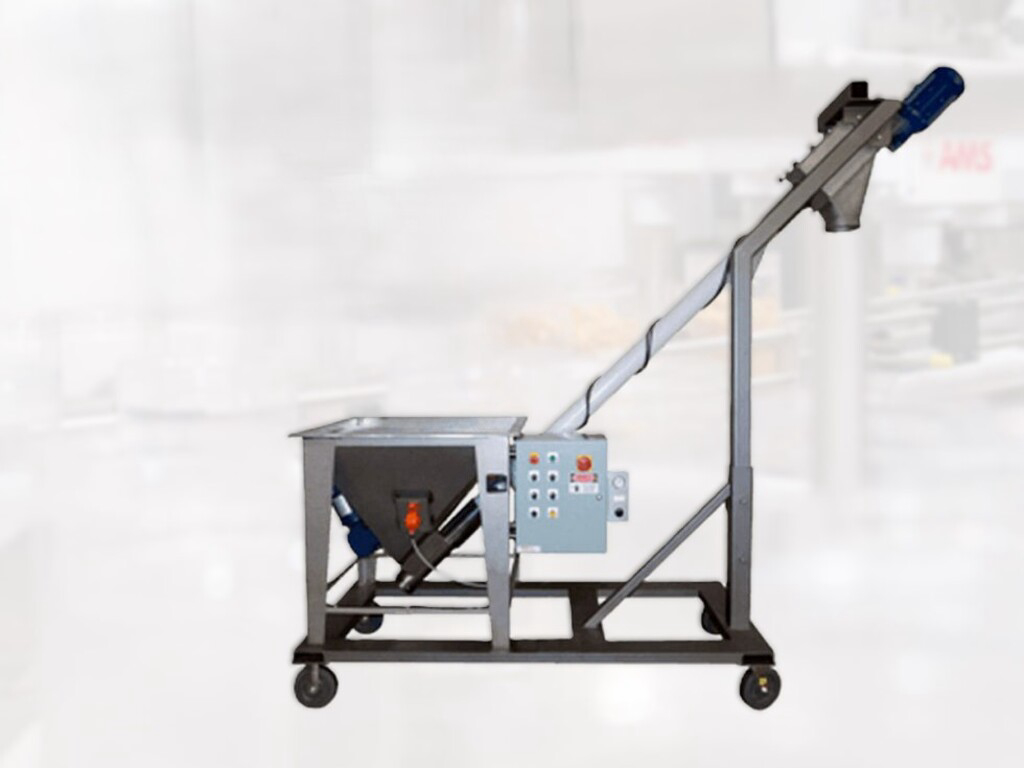

AMS Filling Systems, Inc. FA-800

New AMS FA-800 with Center Shaft Auger Screw Feeder 10' Discharge Height In Stock

These versatile feeders can convey both free flow and non-free flow products and sport a heavy-duty bulk hopper with safety grate. Built for floor-level-to-fill hopper feeding, these feeders are simple to clean and easy to operate. Combined with a level control, the flexible screw feeder will automatically communicate with the AMS filler. When the hopper level drops below a designated point it signals the feeder to convey product. It also automatically stops the feeder once the filler is satisfied.

• Low profile floor hopper
• 8 cubic foot capacity measuring 36 inches square by 38 inches high
• Mesh hopper cover
• Screw conveyor with 4.5 inch diameter ultra-high molecular weight polyethylene outer tubing
• Flat wire configuration spiral with center shaft
• Drive motor : 3 phase, 1725 revolutions per minute, TEFC, 3 phases with parallel shaft reduction unit
• Discharge transitions adapter 45 degree with flange to round outlet
• Stainless steel with a UHMW outer tube
• Fixed Pipe mast support
• Discharge height: 10 foot
• Base mounted painted NEMA enclosure
• Reversing control panel for ease of clean out
• Electricals:
  • Equipment motors: 208-230, 3 phase, 60 hertz
  • Controls: 115 volts, single phase, require seperate plug
  • Compressed air: 60 pounds per square inch @ 5 cubic feet per minute
• Options:
  • Portable mast support
  • Bin master level control
