Used Vertical Baler

53 Used Items
Page 1 of 4

Balers that are configured vertically are typically hand loaded. The wires that go around the bales must be loaded into the baler manually. Recyclables are compressed from the top. After the bale is formed and the door is opened, the bale ejects onto a pre-placed pallet for transport. Vertical balers are useful for businesses that want to save space by compacting bales of recyclable materials.


Start Your Project

IP 606HD Vertical Baler

Used IPS Vertical Baler with: Corrugated bale weight: up to 1100 pounds 10 horsepower motor 6 inch cylinder 45 second cycle time Hydraulic bale ejection Adjustable time delay on compaction stroke...

3600HDLP photo
PTR 3600HDLP Low Profile Vertical Baler

Used PTR Vertical Baler with: 10 horsepower motor 6 inch cylinder Bale size: 60 x 36 x 30 inches Cycle time: 35 seconds Platen force: 67,850 pounds Feed height: 33 inches System pressure: 2400 -...

V5-HD-15 photo
Harris V5-HD-15 Vertical Baler

Used Harris V5-HD-15 Vertical Baler with: Bale size: 60 length x 30 width x 48 height (inches) Bale weight: 900-1100 pounds Cycle time: 50 seconds Motor: 15 horsepower Hydraulic pressure: 1800 pounds...

DOS/DP2 photo
Consolidated Baling DOS/DP2 Baler w/ 10 HP Motor

Used Consolidated Baling DOS/DP2 Baler w/ 10 HP Motor with: Steel construction 10 horsepower motor included 1 compression cylinder Electrics: Frame: 215TYZ Voltage: 208-230/460 volts Amperage:...

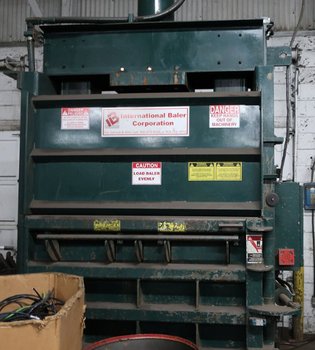

International SMB-6010-XHD Vertical Baler

Used International Baler with: Main cylinder: 10 inch bore Total ram force: 235,620 pounds Ram face pressure: 145 PSI Cycle time: 41 seconds Bale size: Length: 60 inches Width: 30 inches Height:...

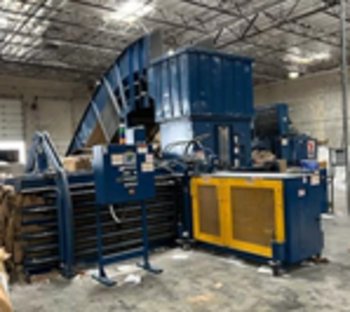

Marathon TR-9 Two-Ram Baler with Conveyor

Used Marathon Baler with: Infeed conveyor Opening dimensions: Width: 40 inches Length: 70 inches Cylinder: 9 inches Cycle time: 13 seconds Main ram: 9 inches Eject ram: 8 inches Bale size: ...

International Baler SMB Series Vertical Baler

Used International Baler Vertical Baler with: Application: SMB series was designed for non-ferrous scrap metals Cycle time: 41 seconds (no load) Finished bale size: Weight: 5,000 pounds (depending...

BACE VMAXX-26 Vertical Baler

Used Vertical Baler with: Bale size: Length: 72 inches Width: 42 inches Height: 45 inches Built-in scale Motor horsepower: 10 Cylinder: 8 inches Load height: 54 inches Cycle time: 55 seconds...

International SMB-6010-XHD Vertical Baler

Used Vertical Baler with: Motor horsepower: 20 Main cylinder: 10 inch bore Total ram force: 235,620 pounds Ram face pressure: 145 psi Cycle time: 41 seconds (no load) Bale size: Length: 60 inch...

VMAXX-26 photo
Bace VMAXX 26 Vertical Baler

Used Bace Vertical Baler with: Model: Vmaxx-26 Bale size: 72 inches x 42 inches x 45 inches Built-in scale Rice Lake 420 Cylinder: 8 inches (7) bale ties Load height: 54...

VMAXX-26 photo
Bace VMAXX-26 Vertical Baler

Used Bace VMAXX-26 Vertical Baler with: Last used for automotive plastic bumper covers Bale size: 72 inches x 42 inches x 42 inches Maximum bale wieght: up to 2,000 pounds, product dependent Bale volume:...

6030 photo
MSI 6030 Vertical Baler

Used MSI 6030 Vertical Baler with: Bale chamber: 30 length x 60 width x 42 height (inches) Bale weight: 800-1,000 pounds Cycle time: 28 seconds Motor: 15 horsepower Hydraulic pressure: 1800 pounds per...

DHR-72-LU photo
J.V. Manufacturing Cram-A-Lot DHR-72-LU Vertical Baler

Used Cram-A-Lot Vertical Cardboard Baler with: Bale Size : Length: 72 inches Width: 30 inches Height: 48 inches Bale Weight: 1100-1400 pounds Cylinder Bore: 7 inches Stroke: 48 inches Driven...

V63HD-CM photo
Rec V63HD-CM Vertical Baler

Used Rec V63HD-CM Vertical Baler with: Bale size (inches): 60 long x 30 wide x 48 high Cylinder: Diameter: 6 inches Stroke: 48 inches System pressure: 2400 psi Compaction force:...

Patriot photo
Piqua Patriot 30x60 Series High Density Baler

Used Piqua Patriot 30x60 Series High Density Baler with: Previously used to bale clothes Finished bale size: 60 length x 30 width x 48 height (inches) Maximum bale weight: 1100 pounds Cylinder bore:...

Showing 1-15 of 53 Items
