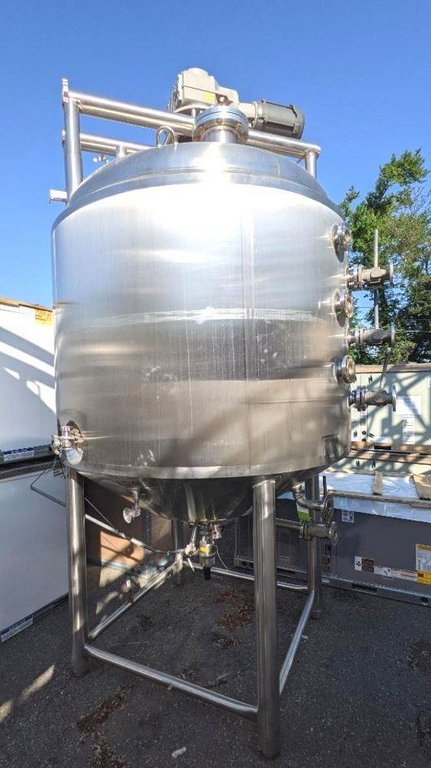

Used APV 1000 Gal Stainless Steel Jacketed Vacuum Tank  Call for availability

Used APV Mix Tank with:

• Capacity: 1,000 gallons
• Dish top, cone bottom
• Jacketed:
  • Coverage: full
  • Rated: 120 psi @ 350° Fahrenheit
• Internal vessel rating: 40 psi/full vacuum @ 350° Fahrenheit
• Agitation:
  • Fixed center baffle
  • Side & bottom scrape
  • Driven by 7.5 horsepower, explosion proof into gearbox motor
  • Final output: 22 rotations per minute
• Top mounted ports:
  • (1) 8 Inch flanged
  • (3) 4 Inches sanitary
  • (5) 2 Inches sanitary
  • (1) 1 Inch sanitary
  • Hinged manway: 18 inches diameter
• Side mounted ports:
  • (1) 2.5 Inch sanitary clamp
  • (1) 2 Inch sanitary fitting port
• Bottom ports:
  • (2) 1 Inch threaded female ports
  • (1) 2.5 Inch threaded male port
  • Discharge outlet with flange fitting:
    • Diameter: 3 inches
    • Pneumatic 2-way ball valve to 2 inch sanitary fitting
    • Discharge height: 32 inches
• Jacket ports: (8) 2 inch flange fittings
• Dual CIP sprayballs
• 316 Stainless steel construction mounted on adjustable welded legs
• Approximate vessel dimensions (inches): 72 diameter x 60 straight side
• Approximate overall dimensions (inches): 92 long x 84 wide x 161 high
