Used G. Mondini Stainless Steel Tray Filling and Sealing Line with Trave 1400 T Automatic Tray Sealer

Description

This line is designed to denest, fill, and seal your ready meal products at a rate of up to 140
trays per minute. A buffer system will feed a dual magazine inclined tray denester which will denest the trays
onto a 26.5 meter dual lane, single chain, servo driven, enhanced sanitary design chain
conveyor. The piston trays will then be advanced continuously in two lanes, long edge
leading. Three moving head carriages will reciprocate both the nozzles and funnels of two piston
fillers and one overhead scale. Scale to be provided by third party and integrated with
Mondini moving head carriage. Additionally two topping dosers will fill the trays with
continuous motion. The trays will then be received from the filling conveyor and sealed 12-up, long edge leading
at a rate of up to 12 cycles per minute. After sealing the trays will be rotated to short edge
leading and combined into a single lane.

Used G. Mondini Tray Filling and Sealing System with:

• Production speed: up to 140 trays per minute
• Dual magazine inclined denester with servomotor:
  • Dual magazine denester is driven by an independent servomotor and is complete with Venturi
    systems pick and place device. The denester will deposit two trays per cycle
• Tray buffer system:
  • A buffer/storage system that provides a steady flow of trays to the denester magazines. It is
    equipped with an operator platform.
• Dual lane, dual chain conveyor: 86.9 feet long
  • Enhanced sanitary design
  • Electric and pneumatic cabling throughout the line – Mondini standard
  • Six (6) e-stop boxes
  • Two (2) confirmation stations
  • Shift register
  • Sanitation mode for conveyor
  • Regina chain
  • Welded standoffs
  • Sanitary feet
  • Pillow block bearings
• Tray Vacuum system

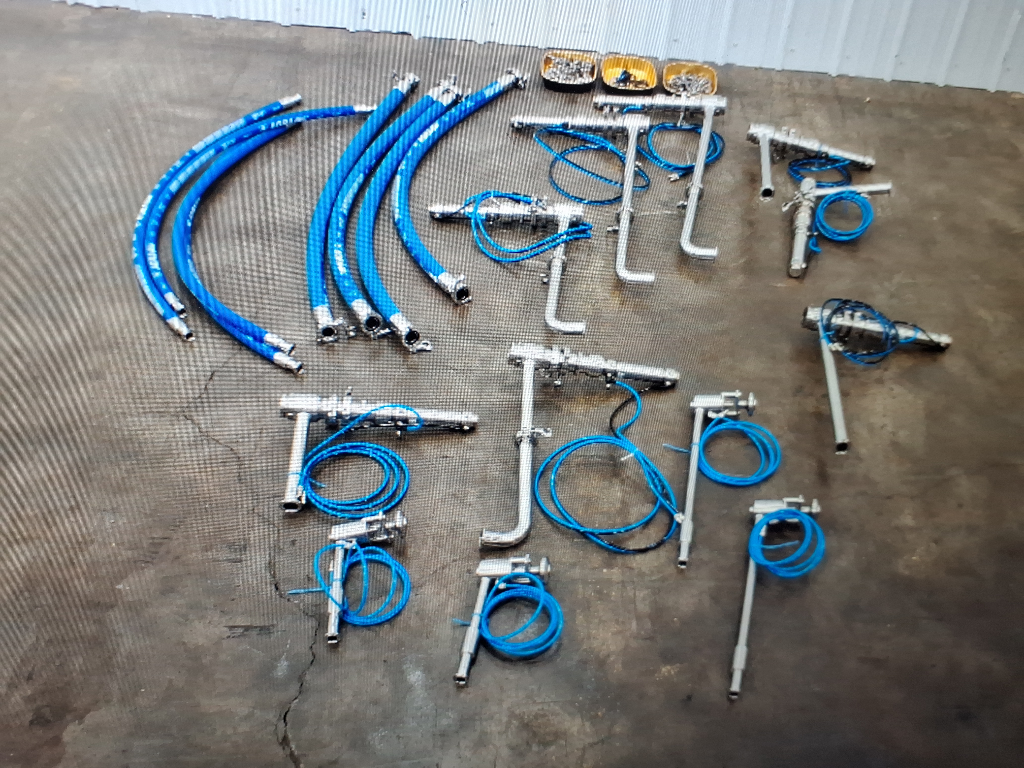

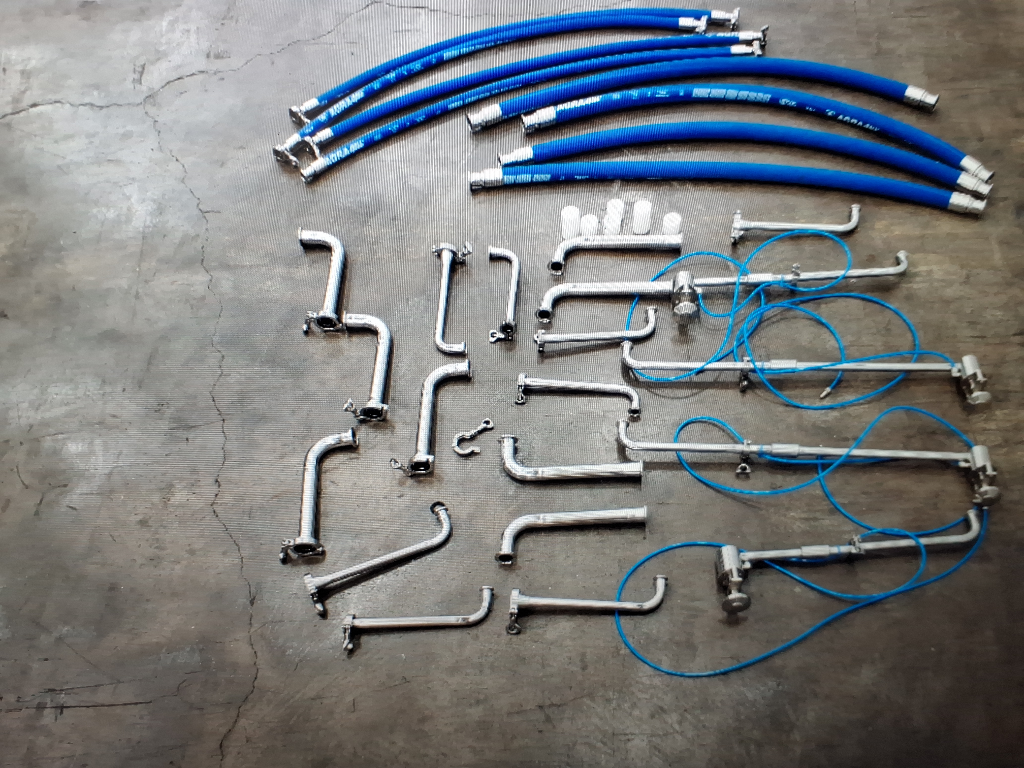

• VF/SP-E-4P-8M Electronic Piston Filler (2):
  • 4 filling heads (two heads per lane)
  • Eight motors
  • Designed for filling product into trays
  • Equipped with a servo motor per piston
  • Product hopper with a capacity of up to 200 liters
  • Four (4) filling valves
  • C.I.P predisposition
  • Product level sensors
• Servo-driven moving head system for following the trays during filling for piston filler
  • Guarding
  • Magnetic locking system for guarding
  • Supports
  • Shoulders
  • Up and down movement
  • Signals
  • Stand-alone electrical cabinet
• DF/GS-400 Filler - 400 Width (2):
  • DF/GS-400 dual lane filler designed for filling topping products into the trays. The product
    must be free-flowing and not sticky. If running cheese, product must be below 32 degrees.
  • Product feeding belt - 400mm width
  • Product filling wheel
  • Product level sensors
  • Levelling wheel designed for controlling the amount of product on the filling belt
  • Filling belt, independently driven
  • Control panel
  • Hopper and feeding elevator belt - the belts are longer than our standard to
    handle the features of the different products
  • Individual lane control
• TRAVE 1400-T SUPER TRAY SEALER (HEAT SEAL):
  • Trave 1400-T Super automatic sealing machine for a heat sealing application. The machine
    is controlled by a fully electro-mechanical system. The maximum tray size to be sealed is
    1,400mm in length x 500mm in width which corresponds to the maximum dimension of the
    sealing tool. The machine handles two rows of trays at the same time.
  • Fully electro-mechanical servo-screw lifting and sealing system. Programmable,
    reliable, and consistent.
  • Driven mandrels for film unwind and scrap rewind.
  • In-feed spacing belt for receiving the trays from previous conveyor and aligning them
    for sealing.
  • Pusher arm drives are controlled by servo-motion in all directions and are driven from
    below and beside the tooling for minimal vibration and mechanical stress.
  • Exit belt for transporting the trays out of the sealing station after being sealed.
  • Electronic control panel for controlling the phases of the sealing process.
  • Robust machine design. The Trave 1400 is twice the weight of similar machines.
  • Reliable tooling design. The Mondini tooling is built with minimal moving parts,
    electronic components, and wear parts for superior uptime efficiency. Our heater plate
    is covered under a ten-year warranty.
  • Sanitary design. The Mondini is built with sloped surfaces, pusher arm drives below the
    product area, exceptional welding and stand-off design with no plate to plate contact,
    and open platform technology for proper sanitation.
  • Elevated electrical cabinet. All electrical components contained in upper cabinets away
    from wet floors.
  • Mechanical cabinet below the product area containing mechanical components.
  • Tool protection eyes
  • One piece cone spreader for film tracking management
  • Dual mandrels with low film sensors
  • Ewon module
• Two to one combiner with tray rotation
• Stainless steel construction
• Electrical requirements: 3 phase, 60 hertz, 460 volts

Last running a 221 mm long x 168 mm wide and a 206.5 mm long by 213mm wide trays
